Home->Machine->Cutting Machine->Gang saw for marble type YXCM-01

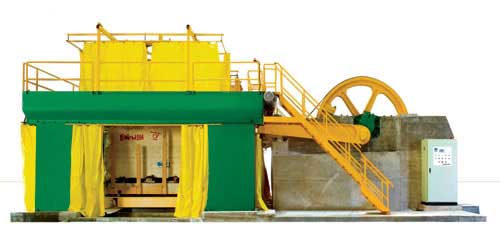

This is a block cutting gang saw for marble for the production of slabs at different thickness. Blocks of different size can be processed . They have a roughly parallelepiped shape having an overall worktable length of 3.3 meters, a worktable height of 2meters and a worktable width of 2meters. Very sturdy structure in high quality steelwork. High quality sliding groups with constant lubrication. Stress resistant blade frame for keeping up the right tension of 80 blades. Electrical centralized switchboard grouping all functions and supervisions of the machine.
| Max. dimensions of blocks(L×W×H) | mm | 3250×2000×2000 |
|---|---|---|
| Max. No. of blades | n | 80 |
| Blade length | mm | 4300 |
| Cutting feed | mm/h | 0-305 |
| Blade stroke | mm | 800 |
| Strokes per minute | rpm | 85 |
| Flywheel shaft diameter | mm | 340 |
| Main motor power | kW | 90 |
Adopting overseas advanced technology, this gang saw for marble is applicable for cutting marble blocks with high efficiency. The marble cutting machine is a block cutting marble for the production of slabs at different thickness. Blocks of different size can be processed. Gang saw for marble has the features of solid structure, fast cutting, less power consumption, high capability, stable performance and low failure rate. Marble cutter has a roughly parallelepiped shape having an overall worktable length of 3.3 meters, a worktable height of 2 meters and a worktable width of 2 meters. Gang saw for marble is provided with very sturdy structure in high quality steelwork; High quality sliding groups with constant lubrication; Stress resistant blade frame for keeping up the right tension of 80 blades. With special tension device, the marble cutting machine can automatically adjust the tension of the blade according to material property, so that to prolong its service life; Electrical centralized switchboard grouping all functions and supervisions of the machine cutter. With frequency control, the gang saw runs steadily and has less risks of damage.
Yuxiang can supply gang saw for marble, marble cutting machine, marble cutter, cutting saw blades, marble cutting saws, gang saw blade, marble cutting board, cultured marble cutting, marble cutting equipment, marble cutting blades.
