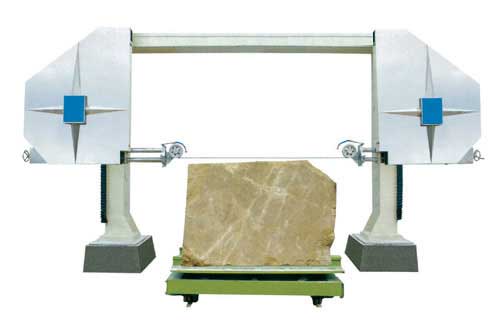

Home->Machine->Cutting Machine-2->Block squaring wire saw type YXCM-12
| Max. cutting dimensions(L×W×H) | mm | 3250×2000×2000 |
|---|---|---|
| Wire length | mm | 18000 |
| Max. cutting height | mm | 600 |
| Cutting linear speed | m/s | 25-33 |
| Main motor power | kW | 7.5 |
| Overall dimensions(L×W×H) | mm | 6000×8000×4500 |
| Approximate weight | kg | 6800 |
Yuxiang is a specialized manufacturer & exporter of Stone cutting machine , such as block squaring wire saw, diamond wire saws, wire saw machine, vertical wire saw, spring fitting wire, wire cutting saw, abrasive wire saw, granite cutting machine, granite cutting saw .
This diamond wire saw machine is an automatic, contouring machine, mainly used for the cutting complex architectural block squaring marble and granite, and processing new-shaped of granite and marble, cutting different sized and thickness, such as profile, column slab, Roman column and words on granite or marble and every kind of natural stone. Well precision block squaring wire saw produce smooth, sharp-edged surfaces on virtually any material. The "cutting tool" employed is a stainless steel wire with diamonds embedded into the surface of the wire. This patented embedding process ensures maximum cutting capability and long wire life.
Since this diamond wire saw is incorporate on structure, it easy to transit, and convenient to install and adjust. The large workpiece, that is block squaring wire saw, can be put directly on the ground, thus increasing the processing stability and saving machine maintenance costs greatly. Block squaring wire saw features high strength, deformation resistance and long service life. It is easy to transport and free of experiment and adjustment. With frequency control, the block squaring wire saw runs steadily and has less risks of damage.
