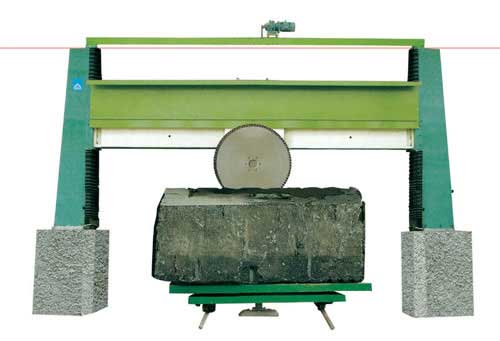

Block squaring cutter
Max. cutting length mm 3500
Max. cutting width mm 2000
Max. cutting height mm 2000
Blade diameter mm 1600
Main motor power kW 22
Approximate weight kg 12000




Yuxiang is a specialized manufacturer & exporter of Stone cutting machine, such as block squaring cutter, square cutter, horizontal cutting machine, tile cutter, marble cutter, stone cutter, granite cutter, diamond saw blade, industrial diamond cutter, stone cutting machine

Big block squaring cutter is an improved set of equipment based on the gantry type stone cutting machine, and is provided with a heavy-type trolley to conduct horizontal on blank materials. Size of horizontal cutting machine can be as big as 3500mm×1800mm×2000mm, and squaring cutter has all the basic functions of the gantry type stone cutting machine. Horizontal cutting machine is of girder rise and fall type structure, and imported frequency converter is used to conduct stepless speed adjustment. With electromechanical integrated design, this block squaring cutter can fulfill cutting task in one time and dispense with the need for discharging the slabs when cutting blocks. Adopting teeth bar, the slab-partition drive mechanism of squaring cutter possesses higher precision with less clearance. With frequency control, the block squaring cutter runs steadily and has less risks of damage. Compact structure, convenient operation, automatic, low work intensity, and fast producing efficiency and high percent of regular product, stable in performance, block squaring cutter is an ideal set of equipment to process a big variety of large-size blocks granite and marble stone with excellent quality.
