Calibrating machine
Diameter of calibrating head mm 450
Working thickness mm 8-120
Working length mm 3000
Working width mm 300-820
Water consumption m3/h 4
Main motor power kW 11




Yuxiang is a specialized manufacturer & exporter of Stone cutting machine, such as calibrating machines, stone grinding machine, stone chamfering machine, stone processing machine, marble processing machine, stone calibrating machine, granite grinding machine, gantry calibrating machine.

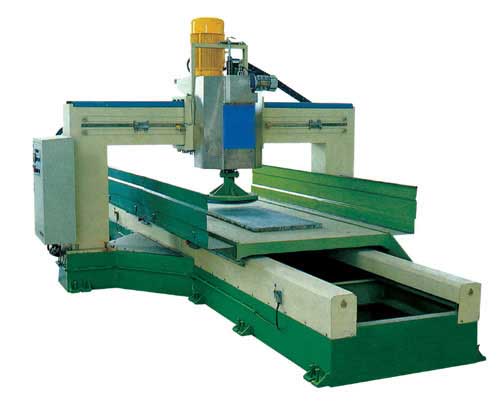

Calibrating Machines is of gantry type combined structure, and imported frequency converter is used to conduct stepless speed adjustment. The trolley is able to perform cutting automatically. All operation the Calibrating Machines are executed either manually by the operator or automatically by the program carrying out. Also we have another kind Large-scale stone grinding machine adopts a single-column supported single-armed overhung structure. The cutting plate lifting stroke is up to 665mm, the horizontal stroke is up to 400mm.

Calibrating Machines are mainly applied for leveling large or thick stone plate surface, and is the special equipment for standardizing the thickness and smoothness of stone plates with varies specification. Stone chamfering machine is compact in structure, elegant in shape, stable in performance and high in machining precision. Its cutting table is driven by hand power and the grinding head can rise and fall flexibly. The head of Stone chamfering machine can perform 360º rotation, and is equipped with a quick mounting system for clamping and grinding wheels as well as extension supporting rack. With frequency control, the Calibrating Machines run steadily and has less risks of damage.
